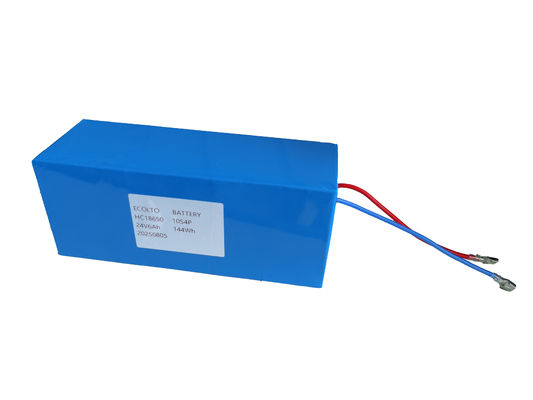

24V 6Ah LTO Lithium Titanate Battery – The Ultimate Solar Tracker Battery For Uninterrupted Solar Performance

10 unités
MOQ
Inquiry
Prix
24V 6Ah LTO Lithium Titanate Battery – The Ultimate Solar Tracker Battery For Uninterrupted Solar Performance
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Tension nominale: 24V
Capacité nominale: 6Ah
Énergie: 144W
Résistance: ≤60mΩ
Efficacité: 0,98
Durée de vie du cycle ((25°C,1C/1C,100%DOD): > 15000 cycles , Capacité restante > 80%
Autodéfense: 10s / 4p
Boîtiers à batterie: PVC
Mettre en évidence:

24V 6Ah LTO solar battery

,

lithium titanate solar tracker battery

,

uninterrupted solar performance battery

Informations de base
Lieu d'origine: Chine
Nom de marque: Ecolite/ECOLTO/OEM/ODM
Certification: UN38.3 MSDS CE RoHS
Numéro de modèle: ECOLTO2406
Conditions de paiement et expédition
Détails d'emballage: Récipient de palette de carton
Délai de livraison: 1-2 mois
Conditions de paiement: T / t, l / c
Capacité d'approvisionnement: 2000 Unités par mois
Description de produit

24V 6Ah LTO Lithium Titanate Battery – The Ultimate Solar Tracker Battery For Uninterrupted Solar Performance


ECOLTO 24V 6Ah Lithium Titanate (LTO) Battery stands as the gold standard for a superior solar tracker battery. Engineered from the ground up to meet the unique demands of solar trackers, this solar tracker battery combines the unmatched safety of LTO chemistry with industrial-grade durability, making it the go-to solar tracker battery for residential, commercial, and utility-scale solar farms. Whether you’re optimizing a small rooftop solar tracker or a large-scale solar farm, this solar tracker battery ensures your system captures maximum sunlight, operates seamlessly in extreme conditions, and delivers long-term value—exactly what every solar tracker battery should be.


Specification
Electrical Parameters
Nominal Voltage 25.6V
Rated Capacity 6Ah
Energy 153.6Wh
Resistance
≤50mΩ
Efficiency
0.98
Cycle Life(25℃,1C/1C,100%DOD)
>2000cycles ,Remaining capacity >80%
Self Discharge
<5% per Month
Cell in Series/Parallel
S/4P





Mechanical Parameters
Dimension(L*W*H)
219mmx90mmx77mm
8.62"x3.54"x3.03"
Weight

2.1Kg

Terminal Type
+,TE 2293255-1;-,TE5-160526-9;
Battery Housing
PVC
Housing Protection
IP20
Cell Type-Chemistry
LiFePO4 Cell
Communication(Optional)
UART(Voltage,Current,Temperature)



Discharge Parameters
Continuous Discharge Current 15A
Pulse Discharge Current
50A (<1S)
Recommended Volt. Disconnect
15V
BMS Discharge Cut-off Voltage
17V
Reconnect Voltage
18V
Short Circuit Protection
200-500us



Charge Parameters


Charge Method CC-CV
Charge Voltage 27.5V-28V
Recommended Float Voltage 27.0V-27.5V
Recommended Charge Current 6A
Maximum Charge Current 15A
BMS Charge Cuf-off Voltage 28.5V





Temperature Parameters
Discharge Temperature
-40 ℃to 60 ℃
Charge Temperature
-40℃to 65 ℃,
Storage Temperature
0℃ to 45℃
BMS High Temperature Cut-off
65 ℃



Not all batteries are designed for solar tracking systems—and this is where our ECOLTO 24V 6Ah LTO Battery shines as a purpose-built solar tracker battery. Unlike generic batteries that fail under harsh outdoor conditions or short lifespans, this solar tracker battery leverages LTO technology to solve the biggest pain points of solar tracker operations. Here’s why it’s the top choice for a solar tracker battery:

Unmatched Safety: A Solar Tracker Battery You Can Trust Outdoors
As a solar tracker battery, safety is non-negotiable—especially for systems installed in unattended, exposed environments. Our LTO-based solar tracker battery eliminates risks of thermal runaway, overheating, or fire, even in extreme temperature swings. This stability makes it the safest solar tracker battery option, protecting your solar investment and avoiding costly downtime.
15,000+ Cycles: A Solar Tracker Battery That Lasts Decades
A solar tracker battery needs to keep up with the 25+ year lifespan of solar panels—and our ECOLTO solar tracker battery delivers. With over 15,000 charge-discharge cycles (25℃, 1C/1C, 100% DOD) and remaining capacity >80%, this solar tracker battery operates reliably for 10+ years. Compare that to lead-acid batteries (500-1,000 cycles) that require frequent replacement—this solar tracker battery cuts long-term costs and maintenance hassle.
Extreme Temperature Performance: A Solar Tracker Battery for Any Climate
Solar trackers work in blizzards, heatwaves, and everything in between—and so does our solar tracker battery. With a charge/discharge temperature range of -40℃ to 65℃, this solar tracker battery maintains consistent power output whether it’s freezing cold or scorching hot. No other solar tracker battery on the market matches this versatility, ensuring your solar tracker never stops working due to temperature extremes.
Fast Charging & High Current: A Solar Tracker Battery That Keeps Up
Solar trackers need instant power to adjust positions and capture sunlight—and our solar tracker battery delivers. With a maximum charge current of 15A (charges quickly during daylight) and continuous discharge current of 15A (pulse up to 50A for <1S), this solar tracker battery powers motors and sensors without lag. It’s the responsive solar tracker battery your system needs to maximize energy harvest.



Applications: The Solar Tracker Battery That Goes Beyond Solar Trackers
While it’s engineered as the ultimate solar tracker battery, its versatility makes it suitable for other low-voltage, high-reliability uses—all while retaining the quality of a premium solar tracker battery:

Solar Tracking Systems: The primary use: powers azimuth/elevation motors, control units, and sensors for all types of solar trackers. It’s the dedicated solar tracker battery your system deserves.
Outdoor Solar IoT: Powers solar-powered security cameras, weather stations, and remote sensors—leveraging the same extreme-temperature resilience as a top solar tracker battery.
Portable Solar Gear: Ideal for small solar generators or off-grid lighting—lightweight (2.1Kg) and efficient, like a compact solar tracker battery.
Industrial Backup: Provides emergency power for small industrial sensors in harsh environments—relying on the same durability as a heavy-duty solar tracker battery.
